Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226

    Buy cheap Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226 from wholesalers

    Buy cheap Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226 from wholesalers
    • Buy cheap Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226 from wholesalers
    • Buy cheap Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226 from wholesalers
    • Buy cheap Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226 from wholesalers
    • Buy cheap Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226 from wholesalers

    Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226

    Ask Lasest Price
    Brand Name : PNC
    Model Number : Doosan Volvo
    Payment Terms : T/T, Western Union, Paypal
    Delivery Time : 1-2 working days
    Price : USD 35-120/PC
    Supply Ability : 5000pcs/month
    • Product Details
    • Company Profile

    Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226

    Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226


    DH220-5 EC210 Main Service Relief Valve Control Valve 2420-1225 2420-1226


    DescriptionDH220-5 Main Relief Valve, EC210 Service Relief Valve, DH220-5 Control Valve
    ApplicationDoosan Volvo Excavator
    ModelDH220-5 EC210 EC240
    Part No.2420-1225 2420-1226
    QualityOEM quality
    TypeMade in china, aftermarket
    PackingLight items pack with carton box, heavy items pack into wooden
    MOQ1PC
    Lead timeAbout 1-3 working days
    PaymentTT, Western union, Paypal, Paysend, RMB
    Warranty3 Months
    Shipping PortHuangpu Old Port, Shenzhen Yantian,Guangzhou

    Excavator DH220-5 EC210 EC240 Main Relief Valve 2420 1225 2420 1226

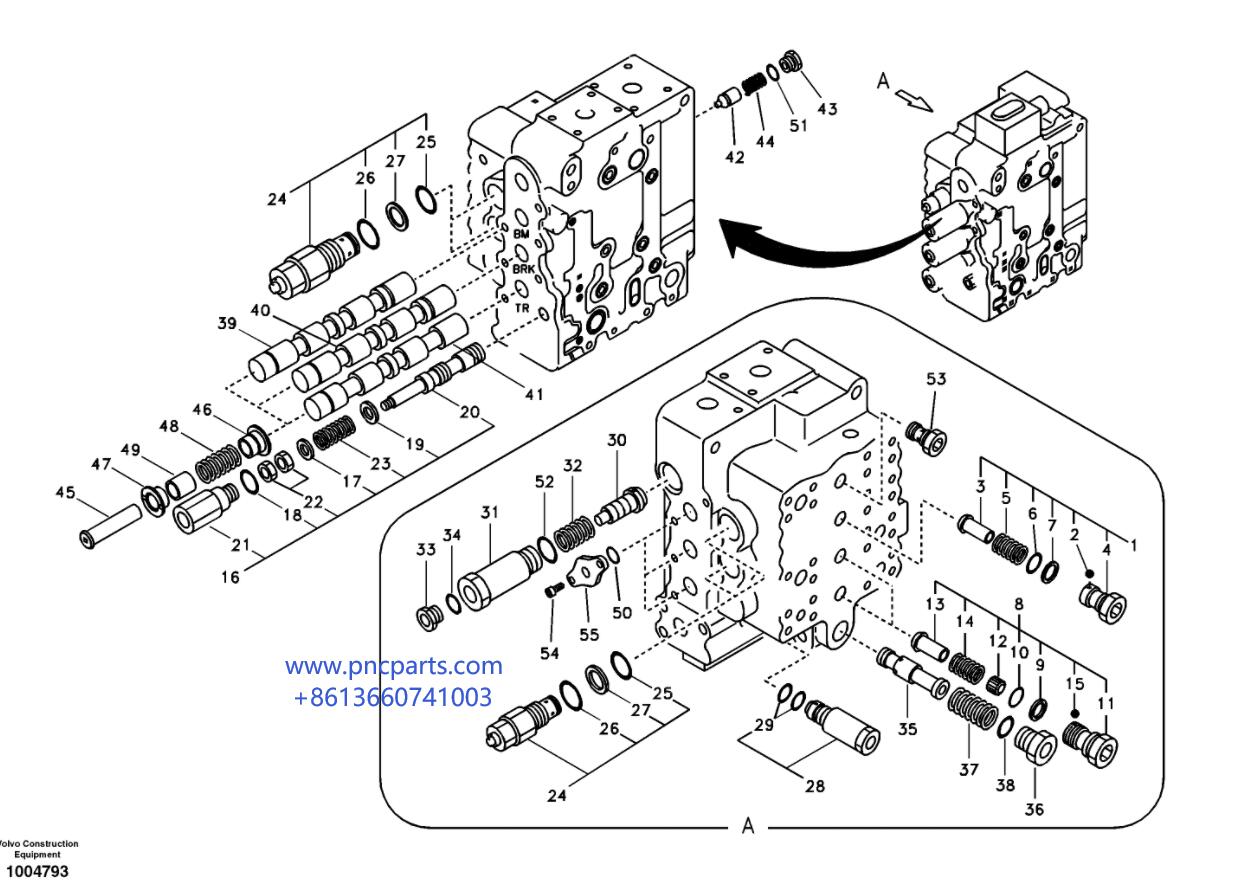

    Parts on group EC240 main valve:

    Pos.Part NoQtyParts nameComments
    VOE14539861[1]Control valve
    1.SA7270-11040[1]Valve
    2.SA7273-10790[1]Ball
    3.SA7273-10110[1]Stay
    4.SA7273-10350[1]Cap
    5.SA7273-10480[1]Spring
    6.VOE983525[1]O-ring
    7.SA9566-10260[1]Back-up ring
    8.VOE14578516[2]Non-return valve
    9.SA9566-10260[1]Back-up ring
    10.VOE983525[1]O-ring
    11.SA7273-10430[1]Cap
    12.SA7273-10100[1]Stay
    13.SA7273-10110[1]Stay
    14.SA7273-10480[1]Spring
    15.SA7273-10790[1]Ball
    16.SA7270-11091[1]Spool
    17.SA7273-10690[1]Shim
    18.VOE983510[1]O-ring
    19.VOE992040[1]Plain washer
    20.SA7272-03121[1]Coil
    21.[1]Cap
    22.VOE983303[2]Hexagon nut
    23.SA7273-10540[1]Spring
    24.SA7270-30160[4]Valve
    25.VOE983507[1]O-ring
    26.VOE993323[1]O-ring
    27.SA9566-10160[1]Back-up ring
    28.VOE14508679[1]Valve
    29.VOE983510[2]O-ring
    30.SA7273-10192[1]Valve
    31.SA7273-10310[1]Cap
    32.SA7273-10651[1]Spring
    33.SA7273-10751[1]Cap
    34.VOE983502[1]O-ring
    35.SA7272-03100[1]Coil
    36.SA7273-10290[1]Cap
    37.SA7273-10611[1]Spring
    38.VOE983527[1]O-ring
    39.VOE14508672[1]Spool
    40.VOE14539862[1]Spool
    41.VOE14508673[1]Spool
    42.SA7273-10180[1]Stay
    43.SA7273-10360[1]Cap
    44.SA7273-10570[1]Spring
    45.SA7273-10390[3]Retainer
    46.SA7273-10460[3]Spring guide
    47.SA7273-10470[3]Spring guide
    48.SA7273-10640[3]Spring
    49.SA7273-10740[3]Spacer
    50.VOE990566[3]O-ring
    51.VOE983505[1]O-ring
    52.VOE983510[1]O-ring
    53.SA7273-10320[1]Cap
    54.SA9016-11005[6]Hex. socket screw
    55.SA7273-10020[3]Plate
    100.VOE14508613[1]Seal


    More relief valves available:

    PART NO.Name
    YN22V00001F3Main Relief
    6E-5933 6E-1915Main Relief Valve
    171-0030 159-7723 310-0395Main Relief Valve
    723-20-63100Main Relief Valve
    709-70-51200Main Relief Valve
    709-70-51401 723-30-90400Main Relief Valve
    709-40-50100 723-40-50100Main Relief Valve
    723-40-50201 723-40-50200Main Relief Valve
    709-70-74302Service Relief Valve
    708-2L-04312Pilot Pump relief valve
    723-40-92101Main Relief Valve
    723-40-91300/91200Service Relief Valve
    4228354Main Relief Valve
    4654860 4372038 420-00257Main Relief Valve
    4289603 4372039Service Relief Valve
    204-2678 5I-8642Swing motor relief valve
    V9402034982 YN22V00001F1-F8Main Relief Valve
    V9404063320 XJBN-00162Service Relief Valve
    XKAY-00313 LS2800FJ2Swing motor relief valve
    31N6-17400 XKBF-00094Main Relief Valve
    31N8-17430Service Relief Valve
    AV280 XJBN-01261Main Relief Valve
    AV280 XKBF-00099Service/Port Relief Valve
    2420-1225Main Relief Valve
    2420-1226Service Relief Valve

    Payment &Packing &Shipping:

    A). TT transfer, Western Union, Paypal, Moneygram are acceptable.


    B). Light goods inner box is neutral white with an strong outer box.Heavy goods wooden with standard packing.If you have legally registered patent,

    we can pack the goods in your branded boxes after getting your authorization letters.


    C). Delivery time: depends on items you buy, most electric parts can shiped within 1-3 working days.


    D). DHL /Fedex /UPS /TNT/ARMEX/SF Express ,etc. normal express shipping way for small cargo.Russia,Kazakhstan, Ukraine Russia Special Line,

    Bangladesh,Myanmar,Vietnam ect, competitive shipping way no need you do customs clearance.Door to Door.


    Warranty Statement:

    1. Warranty Type: We will replace the product which have quality problem.


    2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.

    Contact with us and offer the data, photos of the problem items


    3. You need to pay for the replacement charge for following condition:

    * Wrong Order from customer.
    * Natural Disasters cause the damage.
    * Error installation, improper use.
    * The machine and reducer work over time and over load.
    * Lost by any condition.
    * Human element destroyed.
    * Corrode with rust during stock and running.
    * Warranty Expired.
