    R210-7 Hyundai Spare Parts 11N6-90430 Ac Control Panel

    Ask Lasest Price
    Brand Name : PNC
    Model Number : Hyundai
    Price : USD 42~48/PC
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 3000pcs/month
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    R210-7 Hyundai Spare Parts 11N6-90430 Ac Control Panel

    11N6-90430 Ac Control Panel Heater Panel For R210-7 Hyundai Spare Parts

    Description

    R210-7 Ac Panel, Hyundai Ac Control Panel, 11N6-90430 Heater Panel

    Application

    Hyudnai 7-Series Excavator

    Model

    R140W-7, R210-7, R290-7, R320-7, R500-7

    Part No.

    11N6-90430, 11N690430

    Quality

    OEM quality, China made

    Weight

    1-2kgs

    Packing

    Light items pack with carton box

    MOQ

    1PC

    Lead time

    About 1-3 working days

    Payment

    TT, Western union, Paypal, Paysend, RMB

    Warranty

    3 Months

    Shipping Port

    Huangpu Old Port, Shenzhen Yantian,Guangzhou


    Compatible models:
    7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A
    7-SERIES CRAWLER EXCAVATOR R110-7 R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A

    R210LC7H R210NLC7 R210NLC7A R250LC7 R290LC7 R290LC7A R300LC7 R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A

    R450LC7 R450LC7A R500LC7 R500LC7A R80-7 Hyundai

    R210-7 Hyundai Spare Parts 11N6-90430 Ac Control Panel

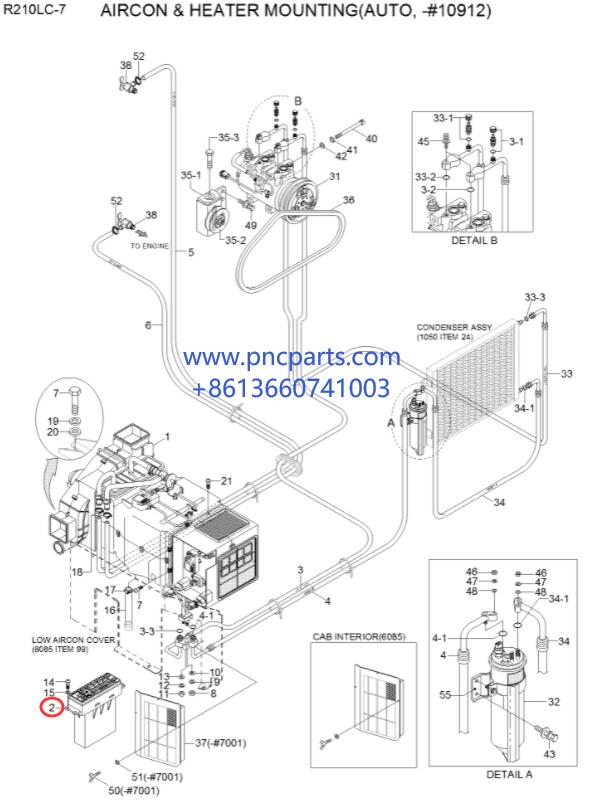

    Parts on group R210-7 Aircon & heater mounting​:

    Pos.Part NoQtyParts nameComments
    *.@[1]AIRCON & HEATER MTG
    1.@[1]AUTO AIRCON & HEATERSEE 1170
    2.11N6-90430[1]CONTROL ASSY-FATC
    2.11N6-90431[1]CONTROL ASSY-FATC
    3.11N8-90130[1]HOSE-SUCTION
    3-1.A304000401-4[1]CHARGE VALVE ASSY
    3-2.A310069299-2[1]O-RING
    3-3.A305000203-2[1]O-RING
    4.11N8-90050[1]HOSE(B)-LIQUID
    4-1.A305000209-2[2]O-RING
    5.11EK-92080[1]HOSE-HEATER
    6.11L7-90140[1]HOSE-RETURN
    7.S017-120256[4]BOLT-HEX
    8.S201-061002[1]NUT-HEX
    9.S411-060002[1]WASHER-SPRING
    10.S403-061002[1]WASHER-PLAIN
    11.S201-081002[1]NUT-HEX
    12.S411-080002[1]WASHER-SPRING
    13.S403-081002[1]WASHER-PLAIN
    14.S175-050206[4]SCREW-SOCKET RD HD
    15.S403-052006[4]WASHER-PLAIN
    16.11EK-92090[1]HOSE-DRAIN
    17.S520-020000[1]CLAMP-HOSE
    18.S572-220006[2]CLAMP-HOSE,WIRE TYPE
    19.S441-120006[4]WASHER-HARDENED
    20.73NB-56400[4]SHIM
    21.S152-040122[4]SCREW-TAPPING
    31.11N6-90040[1]COMPRESSOR ASSY
    32.11N6-90060[1]DRIER-RECEIVER
    33.11N6-90070[1]HOSE-DISCHARGE
    33-1.A304000301-4[1]CHARGE VALVE ASSY
    33-2.A305000206-2[1]O-RING
    33-3.A305000205-2[1]O-RING
    34.11NA-90220[1]HOSE(A)-LIQUID
    34-1.A305000209-2[2]O-RING
    35.11N6-90110[1]PULLEY-IDLE
    35-1.A4760-508-00-2[1]BRACKET-PULLEY
    35-2.A4700-511-01-2[1]PULLEY-IDLE
    35-3.A8900-518-03-3[1]BOLT-TENSION
    36.11N8-00130[1]V-BELT
    37.11N6-90340[1]FILTER-RECSEE 6090
    38.11L7-90150[2]VALVE-HEATER
    40.S109-080956[4]BOLT-SOCKET
    41.S403-081006[4]WASHER-PLAIN
    42.S411-080006[4]WASHER-SPRING
    43.S035-061522[2]BOLT-W/WASHER
    45.S035-083522[2]BOLT-W/WASHER
    46.S205-062002[2]NUT-HEX
    47.S411-060002[2]WASHER-SPRING
    48.S403-062002[2]WASHER-PLAIN
    49.S037-102022[3]BOLT-W/WASHER
    50.S091-060156[3]BOLT-WING
    51.S403-061006[3]WASHER-PLAIN
    52.S572-220006[2]CLAMP-HOSE,WIRE TYPE
    55.11N6-90120[1]BRACKET-R/DRIER


    Warranty Statement:

    1. Warranty Type: We will replace the product which have quality problem.


    2. Warranty Period: Supply 3 months warranty for the products from the date of arrival. Customer should check the items according to the order list after arrival.

    Contact with us and offer the data, photos of the problem items


    3. You need to pay for the replacement charge for following condition:

    * Wrong Order from customer.
    * Natural Disasters cause the damage.
    * Error installation, improper use.
    * The machine and spare parts work over time and over load.
    * Lost by any condition.
    * Human element destroyed.
    * Corrode with rust during stock and running.
    * Warranty Expired.


    FAQ :

    Q1: How can i make payment ?

    A : Bank transfer, Western union, Paypal, Paysend, or RMB.
    bank transfer take 2-3days, while we can arrange order once received the remittance copy.


    Q2: How fast you can do shipment?

    A: Stock items take 1-2days, no stock items 5-7 working days. It depends on the items and the quantity of your order. We will try best to ship goods on time,

    won't let you and your client down.


    Q3: If we dont find what we want on your website, what should we do?

    A: talk with us directly on whatsapp, email, wechat, or phone, we will check inquirys asap. excavator parts have thousands kinds, it's not possible to post

    all production online.


    Q4. Do your product been tested before delivery?

    A: Yes, all product been tested to make sure they are qualified to sell.


    Q5: Can we buy 1 pc of each item for quality testing?
    A: Yes, we value every customer, no matter order amount small or big, with grateful for your trust.
