708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K

    Buy cheap 708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K from wholesalers

    Buy cheap 708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K from wholesalers
    • Buy cheap 708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K from wholesalers
    • Buy cheap 708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K from wholesalers

    708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K

    Ask Lasest Price
    Brand Name : PNC
    Model Number : PC200-6
    Price : USD 35-65/PC
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1000pcs/month
    Delivery Time : 1-2 working days
    • Product Details
    • Company Profile

    708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K

    708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K Gear Pump Relief Valve

    Description

    PC200-6 Pilot Relief Valve, PC240-6K Gear Pump Relief Valve

    Application

    Track excavator

    Model

    PC200-6, PC240-6K, PW130-6K

    Part No.

    708-2L-04312, 7082L04312

    Quality

    OEM quality, China made

    Weight

    0.3-0.5kgs

    Packing

    Carton box

    MOQ

    1PC

    Lead time

    About 1-3 working days

    Payment

    TT, Western union, Paypal, Paysend, RMB

    Warranty

    3 Months

    Shipping Port

    Huangpu Old Port, Shenzhen Yantian,Guangzhou

    Compatible equipment models: 708-2L-04312:
    EXCAVATORS PC200 PC210 PC220 PC230 PC240 PC250 PW130 Komatsu


    708-2L-04312 Pilot Pump Relief Valve PC200-6 PW130-6K

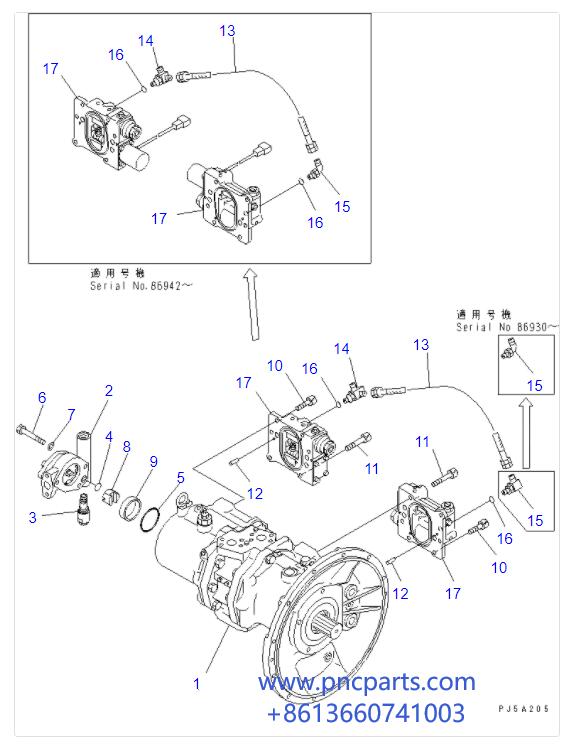

    Parts on group PC200-6 main pump:

    Pos.Part NoQtyParts nameComments
    708-2L-00171[1]PUMP ASS'Y Komatsu China140 kg.
    ["SN: 86942-94998"] analogs:["7082L00170", "7082L00172"] |$3.
    708-2L-00170[1]PUMP ASS'Y Komatsu China140 kg.
    ["SN: 86930-86941"] analogs:["7082L00171", "7082L00172"] |$4.
    708-2L-00074[1]PUMP ASS'Y Komatsu139 kg.
    ["SN: 83952-86929"] analogs:["7082L00075"] |$5.
    [-1]THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1600-21A0 TO Y1600-30A0C.
    1.708-2L-01052[1]PUMP SUB ASS'Y Komatsu China
    ["SN: 83952-@"]
    2.704-24-24420[1]GEAR PUMP ASS'Y Komatsu5.1 kg.
    ["SN: 83952-@"]
    3.708-2L-04312[1]VALVE ASS'Y,RELIEF Komatsu0.29 kg.
    ["SN: 83952-@"]
    4.07000-02018[1]O-RING Komatsu China0.001 kg.
    ["SN: 83952-@"] analogs:["0700012018", "KB9511301800", "YM24311000180", "2083811590"]
    5.07000-02070[1]O-RING Komatsu China0.03 kg.
    ["SN: 83952-@"] analogs:["0700012070"]
    6.01010-81080[3]BOLT Komatsu0.06 kg.
    ["SN: 83952-@"] analogs:["0101051080"]
    7.01643-51032[3]WASHER Komatsu0.17 kg.
    ["SN: 83952-@"] analogs:["R0164351032"]
    8.708-2L-29140[1]COUPLING Komatsu China
    ["SN: 83952-@"]
    9.708-2L-29211[1]COLLAR Komatsu0.121 kg.
    ["SN: 83952-@"]
    10.01252-61025[4]BOLT Komatsu0.028 kg.
    ["SN: 83952-@"]
    11.01252-61065[8]BOLT Komatsu0.053 kg.
    ["SN: 83952-@"]
    12.04020-00616[4]PIN Komatsu0.004 kg.
    ["SN: 83952-@"]
    13.203-62-52390[1]HOSE Komatsu China
    ["SN: 86930-@"]
    13.20Y-62-23170[1]HOSE Komatsu0.4 kg.
    ["SN: 83952-86929"] analogs:["20Y6217380"]
    14.245-62-51510[1]ELBOW Komatsu China
    ["SN: 86930-@"]
    14.20Y-62-22530[1]TEE Komatsu China
    ["SN: 83952-86929"]
    15.07235-10210[1]ELBOW Komatsu0.083 kg.
    ["SN: 86930-@"]
    15.207-62-33920[1]ELBOW Komatsu0.14 kg.
    ["SN: 83952-86929"]
    16.07002-01423[2]O-RING Komatsu China0.001 kg.
    ["SN: 83952-@"] analogs:["0700211423"]
    17.708-2L-03604[2]SERVO VALVE ASS'Y Komatsu8.88 kg.
    ["SN: 86942-@"]
    17.708-2L-03603[2]SERVO VALVE ASS'Y Komatsu8.88 kg.
    ["SN: 83952-86941"] analogs:["7082L03604"]
