31N9-10010 R320-7 K3V180DT Hydraulic Piston Pump EC360BLC K3V180DTP
Hydraulic Pump Parts
Description | R320-7 Main Pump, EC360B Hydraulic Pump, K3V180DT Piston Pump |
Application | Hyundai R320-7 Excavator |
Model | R320LC-7(A), R320-7, EC360BLC, HD1430 |
Part No. | 14531412, 14566659, 31N9-10010, K3V180DT, K3V180DTP |
Quality | 100% new pump, China aftermarket or Korea available |
Weight | 190-200kgs |
Packing | Pack into wooden |
MOQ | 1PC |
Lead time | About 1-3 working days |
Payment | TT, Western union, Paypal, Paysend, RMB |
Warranty | 6 Months |
Shipping Port | Huangpu Old Port, Shenzhen Yantian,Guangzhou |
Tips: To ensure client buy correct parts from China, parts details
like model, part no. pump code, photo or size are required.
more details more good, all these infos are aim to supply you
CORRECT parts to fit well with machine.

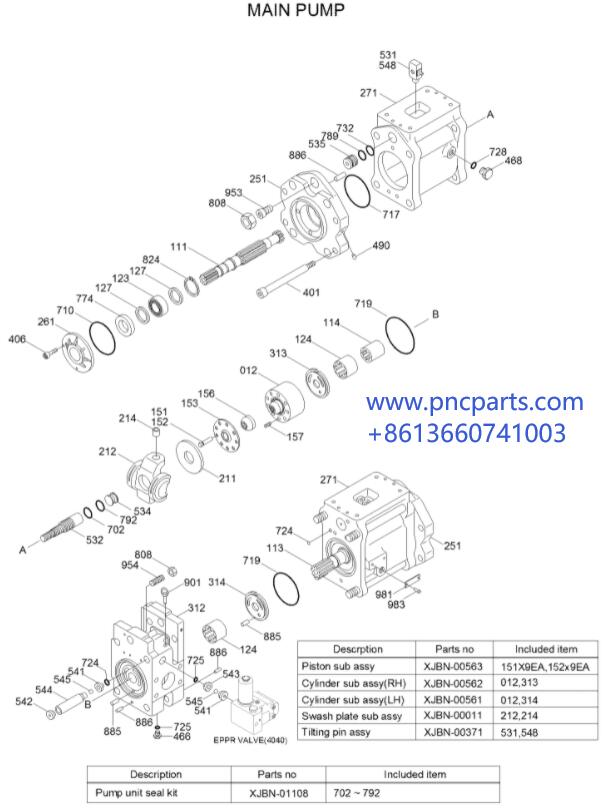

Parts on group R320-7 hydraulic pump:
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| *. | 31N9-10010 | [1] | MAIN PUMP | |
| *-1. | @ | [1] | MAIN PUMP UNIT | |
| NS012. | XJBN-00567 | [2] | BLOCK-CYLINDER | |
| 111. | XJBN-00015 | [1] | SHAFT-DRIVE(F) | |
| 113. | XJBN-00153 | [1] | SHAFT-DRIVE(R) | |
| 114. | XJBN-00367 | [1] | COUPLING-SPLINE | |
| 123. | XJBN-00017 | [2] | BEARING-ROLLER | |
| 124. | XJBN-00018 | [2] | BEARING-NEEDLE | |
| 127. | XJBN-00019 | [3] | SPACER-BEARING | |
| NS151. | XJBN-00566 | [1] | PISTON | |
| NS152. | XJBN-00565 | [1] | SHOE | |
| 153. | XJBN-00020 | [2] | PLATE-SET | |
| 156. | XJBN-00564 | [2] | BUSHING-SPHERICAL | |
| 157. | XJBN-00541 | [18] | SPRING-CYLINDER | |
| 211. | XJBN-00023 | [2] | PLATE-SHOE | |
| S212. | XJBN-00012 | [1] | PLATE-SWASH | |
| S214. | XJBN-00013 | [1] | BUSHING-TILTING | |
| 251. | XJBN-00560 | [2] | SUPPORT-S.P. | |
| 261. | XJBN-00025 | [1] | COVER(FR)-SEAL | |
| 271. | XJBN-00026 | [2] | CASING-PUMP | |
| 312. | XJBN-00027 | [1] | BLOCK-VALVE | |
| S313. | XJBN-00557 | [1] | PLATE-VALVE(R) | |
| S314. | XJBN-00556 | [1] | PLATE-VALVE(L) | |
| 325. | XJBN-00380 | [1] | CASING-VALVE | |
| 401. | XJBN-00028 | [8] | SCREW | |
| 406. | XJBN-00355 | [4] | SCREW | |
| 466. | XJBN-00356 | [2] | PLUG | |
| 468. | XJBN-00357 | [3] | PLUG | |
| 490. | XJBN-00032 | [30] | PLUG | |
| NS531. | XJBN-00369 | [1] | PIN-TILTING | |
| 532. | XJBN-00033 | [2] | PISTON-SERVO | |
| 534. | XJBN-00034 | [2] | STOPPER(L) | |
| 535. | XJBN-00035 | [2] | STOPPER(S) | |
| N541. | XJBN-00036 | [4] | SEAT | |
| N543. | XJBN-00037 | [2] | STOPPER 1 | |
| N544. | XJBN-00039 | [2] | STOPPER 2 | |
| 545. | XJBN-00359 | [4] | BALL-STEEL | |
| NS548. | XJBN-00360 | [1] | PIN-FEED BACK | |
| K702. | XJBN-00040 | [2] | O-RING | |
| K710. | XJBN-00041 | [1] | O-RING | |
| K717. | XJBN-00042 | [2] | O-RING | |
| K719. | XJBN-00043 | [2] | O-RING | |
| K724. | XJBN-00044 | [16] | O-RING | |
| K725. | XJBN-00362 | [4] | O-RING | |
| K727. | XJBN-00283 | [1] | O-RING | |
| K728. | XJBN-00363 | [3] | O-RING | |
| K732. | XJBN-00047 | [2] | O-RING | |
| K774. | XJBN-00906 | [1] | SEAL-OIL | |
| K789. | XJBN-00049 | [2] | RING-BACK UP | |
| K792. | XJBN-00050 | [2] | RING-BACK UP | |
| 808. | XJBN-00364 | [4] | NUT | |
| 824. | XJBN-00052 | [2] | RING-SNAP | |
| 885. | XJBN-00053 | [2] | PIN-2 | |
| 886. | XJBN-00365 | [4] | PIN-SPRING | |
| 901. | XJBN-00055 | [2] | BOLT-EYE | |
| 953. | XJBN-00654 | [2] | SCREW-SET | |
| 954. | XJBN-00057 | [2] | SCREW-SET | |
| 981. | XJBN-00391 | [1] | NAME PLATE | |
| 983. | XJBN-00341 | [2] | PIN | |
| *-2. | XJBN-00656 | [1] | REGULATOR | |
| *-3. | XJBN-00655 | [1] | GEAR PUMP | |
| 011. | XJBN-00563 | [18] | PISTON ASSY | |
| 013. | XJBN-00562 | [1] | CYLINDER ASSY-RH | |
| 014. | XJBN-00561 | [1] | CYLINDER ASSY-LH | |
| 030. | XJBN-00011 | [2] | SWASH PLATE ASSY | |
| 530. | XJBN-00371 | [2] | TILTING PIN SUB ASSY | |
| K. | XJBN-01108 | [1] | SEAL KIT-PUMP UNIT | |
Warranty Statement:
1. Warranty Type: We will replace the product which have quality
problem.
2. Warranty Period: Supply 3 months warranty for the products from
the date of arrival. Customer should check the items according to
the order list after arrival.
Contact with us and offer the data, photos of the problem items
3. You need to pay for the replacement charge for following
condition:
* Wrong Order from customer.
* Natural Disasters cause the damage.
* Error installation, improper use.
* The machine and reducer work over time and over load.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
FAQ :
Q1: How can i make payment ?
A : Bank transfer, Western union, Paypal, Paysend, or RMB.
bank transfer take 2-3days, while we can arrange order once
received the remittance copy.
Q2: How fast you can do shipment?
A: Stock items take 1-2days, no stock items 5-7 working days. It
depends on the items and the quantity of your order. We will try
best to ship goods on time,
won't let you and your client down.
Q3: If we dont find what we want on your website, what should we
do?
A: talk with us directly on whatsapp, email, wechat, or phone, we
will check inquirys asap. excavator parts have thousands kinds,
it's not possible to post
all production online.
Q5. Do your product been tested before delivery?
A: Yes, all product been tested to make sure they are qualified to
sell.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we value every customer, no matter order amount small or
big, with grateful for your trust.
