    Hyundai R210 7 R300 9S ECU Control Unit 21N6 44100 21Q8 32180

    Ask Lasest Price
    Brand Name : PNC
    Model Number : Hyundai
    Payment Terms : T/T, Western Union, Paypal
    Delivery Time : 1-3 working days
    Price : USD 465-498/PC
    Supply Ability : 1000pcs/months
    • Product Details
    • Company Profile

    Hyundai R210 7 R300 9S ECU Control Unit 21N6 44100 21Q8 32180

    Hyundai R210 7 R300 9S ECU Control Unit 21N6 44100 21Q8 32180


    Hyundai R210-7 Excavator Controller 21N6-44100 R300-9S ECU Control Unit

    Description

    R210-7 Excavator Controller, R300-9S ECU Control Unit, R210-7 Control Unit

    Application

    Hyundai Excavator Engine

    Model

    R210-7 R300-9S

    Part No.

    21N6-44100 21Q8-32180

    Quality

    China quality

    Type

    Genuine, aftermarket

    Packing

    Light items pack with carton box, heavy items pack into wooden case

    MOQ

    1PC

    Lead time

    About 1-3 working days

    Payment

    TT, Western union, Paypal, Paysend, RMB

    Warranty

    3 Months

    Shipping Port

    Huangpu Old Port, Shenzhen Yantian,Guangzhou

    Hyundai R210 7 R300 9S ECU Control Unit 21N6 44100 21Q8 32180

    Hyundai R210 7 R300 9S ECU Control Unit 21N6 44100 21Q8 32180


    Parts on group R210-7 ELECTRIC BOX​:

    Pos.Part NoQtyParts nameComments
    4.S661-210300[1]CAP-RUBBER
    12.S035-082522[2]BOLT-W/WASHER
    13.S035-081622[4]BOLT-W/WASHER
    14.21N4-10441[1]SWITCH-MASTER
    14.21L7-10500[1]SWITCH-MASTER
    14-1.21N4-10441K[1]KEY-MASTER SWITCH
    15.21N4-10451[1]DECAL-MASTER SW
    24.S035-062022[4]BOLT-W/WASHER
    27.S037-102022[7]BOLT-W/WASHER
    35.21N8-00701[1]ELECTRIC BOX ASSY
    35-1.21N8-00710[1]ELECTRIC BOX WA
    35-2.21N6-20152[1]PLATE-FRONT COVER
    35-8.S017-100162[4]BOLT-HEX
    35-9.S411-100002[4]WASHER-SPRING
    35-10.21N6-20180[2]PAD-RUBBER
    37.25D1-10650[1]CLIP ASSY
    43.21N6-44100[1]CPU CONTROLLER
    44.21E7-2000[1]RESISTER-PROLIXOPT
    47.S593-000752[2]CLIP-HARNESS

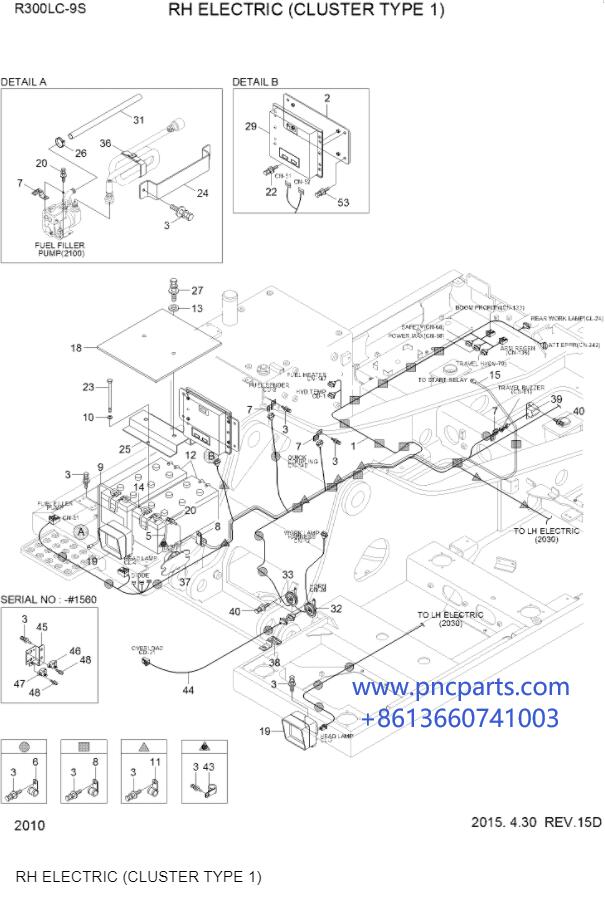

    Parts on group R300-9S Parts on group RH ELECTRIC (CLUSTER TYPE 1):

    Pos.Part NoQtyParts nameComments
    1.21Q8-18100[1]HARNESS-FRAME
    1.21Q8-18101[1]HARNESS-FRAME
    1.21Q8-18102[1]HARNESS-FRAME
    1.21Q8-18103[1]HARNESS-FRAME
    1.21Q8-18104[1]HARNESS-FRAME
    1.21Q8-18105[1]HARNESS-FRAME
    1-1.21EA-50550[1]DIODE-IN5406NOT SHOWN
    1-2.21EA-50570[1]DIODE-FE3DNOT SHOWN
    1-3.21Q6-03270[1]MAXI FUSE ASSYNOT SHOWN
    1-4.21LM-03140[1]FUSE-MAXI(40A)NOT SHOWN
    1-5.21LM-03160[1]FUSE MAXINOT SHOWN
    2.21Q6-14900[1]PLATE-MCU
    3.S037-102026[36]BOLT-W/WASHER
    3.S037-102026[40]BOLT-W/WASHER
    3.S037-102026[39]BOLT-W/WASHER
    5.21N8-10300[1]CABLE(BATT-RELAY)
    5.21Q6-12400[1]CABLE(BATT(+)-RELAY)
    5.21E2-60140[1]CABLE(BATT-BATT RY)
    6.31L7-10190[11]CLAMP-TUBE
    7.25D1-10640[4]CLIP ASSY
    8.31L7-10200[10]CLAMP-TUBE
    8.31L7-10200[11]CLAMP-TUBE
    9.24L3-01120[1]CABLE(BATT-EARTH)
    9.21EM-11000[1]CABLE(BATT-EARTH)
    10.S403-10200B[2]WASHER-PLAIN
    11.31L7-10230[7]CLAMP-TUBE
    12.E125-1501[2]BATTERY
    13.21EN-30570[2]WASHER-PLAIN
    14.21EN-10120[1]CABLE(BATT-BATT)
    15.21EM-10110[1]CABLE(RELAY-START)
    18.21Q8-42041[1]COVER-BATTERY
    18.21N8-42041[1]COVER-BATTERY
    19.21QB-60700[2]WORK LAMP ASSY
    19-1.S866-240650[1]BULB-H3,65WNOT SHOWN
    20.S035-083026[6]BOLT-W/WASHER
    22.S035-082026[4]BOLT-W/WASHER
    23.S017-102406[2]BOLT-HEX
    24.21QB-20080[1]PLATE-CLAMPFUEL PUMP
    25.21Q8-42060[1]BRACKET-BATTERY
    26.S520-032000[1]CLAMP-HOSE
    27.S037-102526[2]BOLT-W/WASHER
    28.21E9-00170[2]CLIP-HARNESS
    29.21Q8-32180[1]MCU(MACHINE CNTL UNIT)
    29.21Q8-32181[1]MCU(MACHINE CNTL UNIT)CUMMINS
    29.21Q8-32150[1]MCU(MACHINE CNTL UNIT)HCEC
    31.21Q8-21630[1]HOSE-OUTLET
    32.21N5-10061[1]HORN-HIGH
    33.21N5-10051[1]HORN-LOW
    36.E127-3158[1]BAND-FUEL PUMP
    37.21E5-0003[1]RELAY-BATTERY
    37.21QA-70010[1]RELAY-BATTERY
    37.21QA-70011[1]RELAY-BATTERY
    37.21E5-0003[1]RELAY-BATTERY
    37.21QA-70010[1]RELAY-BATTERY
    37.21QA-70011[1]RELAY-BATTERY
    38.25D1-10650[1]CLIP ASSY
    39.21N4-46800[1]BUZZER-BACK
    40.S035-081526[4]BOLT-W/WASHER
    43.31L7-10210[4]CLAMP-TUBE INS
    44.21Q8-16410[1]HARNESS-OVERLOAD
    45.21Q8-22300[2]PLATE-CIRCUIT BREAKER
    45.21Q6-14101[1]PLATE
    46.21Q4-01161[1]BREAKER-CIRCUIT ,30A
    47.21M9-01171[1]CIRCUIT-BREAKER,60A
    48.S141-040206[4]SCREW-FLAT HD
    48.S131-042046[4]SCREW-W/WASHER
    53.S035-083526[4]BOLT-W/WASHER


    Payment &Packing &Shipping:

    A). TT transfer, Western Union, Paypal, Moneygram are acceptable.


    B). Light goods inner box is neutral white with an strong outer box.Heavy goods wooden case with standard packing.If you have legally registered patent,

    we can pack the goods in your branded boxes after getting your authorization letters.


    C). Delivery time: depends on items you buy, most electric parts can shiped within 1-3 working days.


    D). DHL /Fedex /UPS /TNT/ARMEX/SF Express ,etc. normal express shipping way for small cargo. Russia,Kazakhstan, Ukraine Russia Special Line,

    Bangladesh,Myanmar,Vietnam ect, competitive shipping way no need you do customs clearance.Door to Door.


    FAQ :

    Q1: How can i make payment ?

    A : Bank transfer, Western union, Paypal, Paysend, or RMB.
    bank transfer take 2-3days, while we can arrange order once received the remittance copy.


    Q2: How fast you can do shipment?

    A: Stock items take 1-2days, no stock items 5-7 working days. It depends on the items and the quantity of your order. We will try best to ship goods on time,

    won't let you and your client down.


    Q3: If we dont find what we want on your website, what should we do?

    A: talk with us directly on whatsapp, email, wechat, or phone, we will check inquirys asap. excavator parts have thousands kinds, it's not possible to post

    all production online.


    Q5. Do your product been tested before delivery?

    A: Yes, all product been tested to make sure they are qualified to sell.


    Q4: Can we buy 1 pc of each item for quality testing?
    A: Yes, we value every customer, no matter order amount small or big, with grateful for your trust.
